Super Shox Premium SR2 Rear Shocks | Harley-Davidson Road Glide (02'-Present)

Super Shox Premium SR2 Rear Shocks
Harley-Davidson Road Glide (2002–Present)

Super Shox SR2 rear shocks are American-made suspension built for Road Glide riders who want more usable travel, better load support, and greater control than factory rear suspension typically provides.

Each set is configured around your rider weight, passenger use, luggage, Tour Pack, and normal riding load. Super Shox manufactures, assembles, tests, and dyno-tunes its motorcycle suspension at its facility in Grayslake, Illinois.

For most two-wheel Road Glide riders, SR2 LT is the recommended starting point. It combines approximately 3.5 inches of suspension travel with a relocation mount on each side that keeps the bike at stock ride height.

Dreaded Iron Moto is an authorized U.S. Super Shox retailer. We review your motorcycle and rider information before submitting the build, helping catch incorrect fitment or setup details before production begins.

Most Road Glide Riders Should Start With SR2 LT

SR2 LT is designed for Road Glide riders who prioritize comfort, control, and usable suspension travel over simply choosing the shortest shock.

Choose SR2 LT if you want:

• Approximately 3.5 inches of suspension travel

• Better control over rough or broken pavement

• Improved support when riding two-up

• More control when carrying luggage or a Tour Pack

• Reduced harshness and bottoming

• A stable, planted feel through curves

• Better long-distance comfort without raising the motorcycle

The included relocation mounts, one on each side, create additional usable travel. The spring and damping configuration is engineered specifically for that mounting position.

LT is not a taller shock or lift kit. It keeps the bike at stock ride height.

SR2 LT vs. SR2 SL

SR2 LT uses a relocation mount on each side. SR2 SL is a 13" shock that goes on the stock mounts, using the stock bolt.

SR2 LT — Recommended for Most Riders

SR2 LT uses a 14-inch shock with approximately 3.5 inches of travel.

According to Super Shox:

• LT keeps the bike at stock ride height, with a relocation mount on each side

LT is the strongest starting point for riders who prioritize maximum usable travel, two-up support, loaded touring, and long-distance comfort.

SR2 SL — About 1/2 Inch Lower

SR2 SL is a 13" shock that goes on the stock mounts, using the stock bolt.

According to Super Shox:

• SL sits about 1/2 inch lower than stock

Most riders choose LT. Choose SL if you want to sit about 1/2 inch lower than stock and are fine with less suspension travel than LT.

When lowering any motorcycle, tire clearance, fender clearance, exhaust clearance, load, and full suspension movement must be checked carefully.

Built Around Your Actual Riding Load

Two riders can own the same Road Glide and place completely different demands on the rear suspension.

A solo rider without luggage does not need the same spring and damping configuration as a rider carrying a passenger, loaded saddlebags, and a Tour Pack.

Your Super Shox build is configured using:

• Road Glide year and exact model

• Rider weight with normal riding gear

• Passenger weight

• Typical luggage or cargo

• Percentage of two-up riding

• Tour Pack use

• Normal riding conditions

This information does not determine whether you need SR2 LT or SR2 SL. It allows Super Shox to establish the appropriate spring and damping configuration after you select the geometry and ride height that fit your goal.

Super Shox offers an extensive range of spring rates and damping configurations instead of limiting riders to a basic standard-duty or heavy-duty choice.

What Road Glide Riders Commonly Notice

Compared with factory Harley-Davidson Touring suspension, riders commonly report:

• Less harshness over expansion joints

• Better absorption of larger bumps

• Reduced bottoming

• Less rear-end kick over choppy pavement

• Better stability with a passenger or luggage

• A calmer feel at highway speed

• Improved cornering confidence

• Less upper-back and tailbone fatigue during long rides

Actual results depend on the motorcycle, condition of the original suspension, total riding load, selected SR2 configuration, and proper preload setup.

American-Made and Dyno-Tuned in Illinois

Super Shox is not an imported shock relabeled for the Harley market.

Its motorcycle suspension is manufactured, assembled, tested, and dyno-tuned in Grayslake, Illinois. Each SR2 build combines American-made construction with a spring and damping configuration selected around the motorcycle and submitted rider profile.

Construction features include:

• Gas-assisted monotube design

• Aircraft-grade aluminum components

• Durable anodized finish

• High-strength, low-friction shaft

• Deflective-disc valving

• Sealed gas chamber

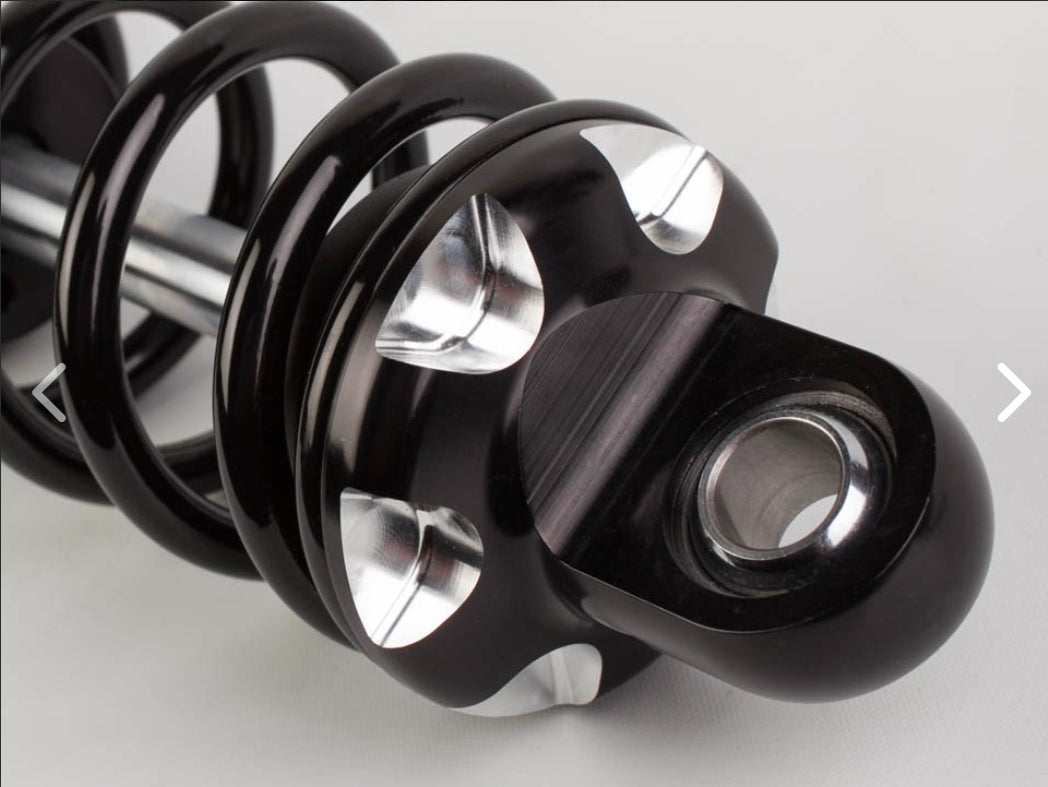

• Spherical bearing mounts

• Calibrated preload adjustment

• Multiple spring-rate and damping configurations

• Precision-machined relocation hardware

These components are designed to provide consistent suspension movement and maintain control as road conditions, speed, and motorcycle load change.

Deflective-Disc Valving

A shock must react to smaller road imperfections without losing control during larger impacts.

Super Shox uses deflective-disc valving to provide responsive initial movement while maintaining the damping control needed over larger bumps, potholes, expansion joints, and repeated rough pavement.

Its sealed gas-chamber design also helps reduce cavitation—the formation of bubbles in the shock oil that can make damping less consistent.

Spherical Bearing Mounts

Traditional rubber-style shock mounts can introduce resistance as the suspension moves and the motorcycle leans.

Super Shox uses spherical bearing mounts that allow freer movement at the mounting points. This helps reduce suspension bind and allows the shocks to respond more naturally through curves and uneven pavement.

Tool-Free Preload Adjustment

Road Glide riders rarely carry the same load on every ride.

The calibrated preload adjustment system makes it easier to compensate when changing between:

• Solo riding

• Solo riding with luggage

• Two-up riding

• Two-up riding with loaded saddlebags

• Tour Pack and multi-day travel loads

The shocks arrive preset for you and your bike, with a chart that shows exactly where they’re set.

Preload changes compensate for changes in load. They do not replace the correct spring and damping configuration established when the shocks are built.

Installation and Included Hardware

SR2 is designed as a bolt-on rear suspension upgrade for compatible Harley-Davidson Road Glide models.

• SR2 LT: Includes a relocation mount for each side

• SR2 SL: Goes on the stock mounts, using the stock bolt

• No cutting or permanent frame modification is required

• Normal preload adjustments do not require special tools

• Installation instructions and a preload setup chart are included

The relocation mounts are precision-machined from 6061 aluminum with a steel mounting stud. They are designed to lock into the swingarm and maintain appropriate clearance with the shock and saddlebags.

Always support the motorcycle properly and follow the supplied installation instructions. If you are not comfortable working on motorcycle suspension, installation by a qualified technician is recommended.

Ride Height and Shock Length

Super Shox describes its Touring suspension around the intended installed riding stance—not only an unloaded eye-to-eye measurement taken before installation.

An uninstalled shock may measure differently from the motorcycle’s settled ride height. Original shock length, rider weight, spring configuration, preload, relocation geometry, and proper sag all affect the final stance.

For that reason, do not select SR2 solely by comparing an unloaded shock measurement with the motorcycle’s current settled height.

• Choose LT when usable travel, loaded support, and long-distance comfort are the priorities

• Choose SL if you want to sit about 1/2 inch lower than stock, with less travel than LT

Fitment—Harley-Davidson Road Glide

• Model years: 2002–Present, as listed in the product options

• Application: Compatible two-wheel Harley-Davidson Road Glide models

• Riding loads: Solo, solo with gear, two-up, or two-up with luggage

• Tour Pack: Compatible and configured around normal use

• SR2 LT: 14" shock with a relocation mount on each side, approximately 3.5 inches of travel, at stock ride height

• SR2 SL: 13" shock on the stock mounts, using the stock bolt

• Limitation: Not intended for 2001-and-older Touring swingarms

• Limitation: Certain special, Limited, CVO, or model-specific applications may require a separate product listing

Select the correct model year and exact Road Glide model when ordering. Dreaded Iron Moto reviews the submitted information before sending the build into production.

Finish and Configuration Options

Available finishes are displayed in the product selectors.

Depending on current availability, Super Shox may offer black, chrome, and custom-color configurations. Heavy-load builds and additional spring-rate or damping configurations are selected according to the motorcycle and submitted rider profile.

If you need a finish or configuration that is not displayed, contact Dreaded Iron Moto before ordering.

Build Time and Shipping

Super Shox are built to order around the submitted motorcycle and rider information.

Most orders ship within 3–9 business days. Tracking information is emailed when the order ships.

Production time may increase during peak riding season. Riders preparing for a scheduled trip should order early whenever possible.

What Happens After You Order?

Dreaded Iron Moto reviews the submitted:

• Motorcycle year and exact model

• Selected SR2 configuration

• Rider weight

• Passenger weight

• Typical luggage or cargo

• Two-up riding frequency

• Tour Pack use

If something appears inconsistent, we contact you before submitting the build.

Once the information is confirmed, the shocks move into production at Super Shox. Tracking information is emailed when the completed order ships.

Warranty and Returns

Super Shox includes a 30-day money-back guarantee and a limited lifetime warranty for the original purchaser covering the repair of qualifying manufacturing defects for the life of the product.

Manufacturer warranty registration is required.

Damage caused by misuse, improper installation, accidents, unauthorized modifications, or use outside the product’s intended application is not covered.

Contact Dreaded Iron Moto before initiating a return or warranty request so we can review the fitment, setup, and appropriate next step.

Frequently Asked Questions

Which SR2 configuration should most Road Glide riders choose?

Most Road Glide riders looking for maximum usable travel, improved loaded support, and greater long-distance comfort should start with SR2 LT.

SR2 SL is for riders who want to sit about 1/2 inch lower than stock and accept less suspension travel than LT.

Does SR2 LT use a relocation mount?

Yes. SR2 LT includes a relocation mount for each side. The shock’s spring and damping configuration is engineered specifically for that mounting position.

Does SR2 SL use the factory mounting location?

Yes. SR2 SL is a 13" shock that goes on the stock mounts, using the stock bolt.

Will SR2 LT raise my Road Glide?

Not necessarily.

No. LT is long travel that keeps your Road Glide at stock ride height, with a relocation mount on each side. If you want to sit about 1/2 inch lower than stock, that’s the SL.

How much lower is SR2 SL?

According to Super Shox:

• About 1/2 inch lower than stock

Can SR2 be configured for heavier riders?

Yes. Super Shox offers multiple spring-rate and damping configurations, including heavy-load setups. Rider, passenger, Tour Pack, and luggage information is collected so the shocks can be configured for the intended load.

Can I adjust the shocks for a passenger or luggage?

Yes. They arrive preset for you and your bike, with a chart that shows exactly where they’re set. The calibrated preload system lets you adjust for a passenger or luggage.

Do I need special tools to adjust preload?

No special tools are required for normal preload adjustment.

How long do Super Shox take to ship?

Most built-to-order sets ship within 3–9 business days. Production timing may increase during peak riding season.

How do I know my setup information is correct?

Dreaded Iron Moto reviews the submitted motorcycle and rider information before the build is sent into production. If something does not look right, we contact you before the shocks are built.
